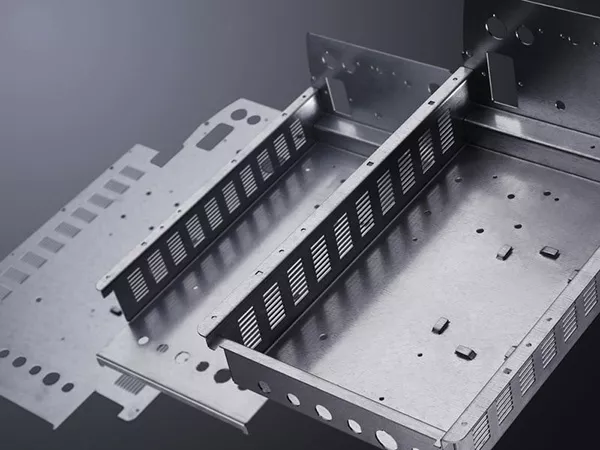

What is Sheet Metal Fabrication?
Sheet metal fabrication is a transformative manufacturing process that shapes flat metal sheets into functional components through cutting, bending, and assembling techniques. Using advanced CNC machinery, lasers, and press brakes, this method creates durable parts with precision thicknesses from 0.5mm to 6mm. From HVAC ducts to automotive chassis, sheet metal fabrication delivers versatility for both prototyping and large-scale production.
The process begins with CAD-driven designs, followed by laser cutting or stamping to form base shapes. Next, hydraulic presses or robotic arms apply up to 2,000 tons of force to achieve sharp bends (±0.1mm accuracy). Final assembly integrates welding, riveting, or bonding for complex structures like enclosures or machinery frames. Modern shops combine 3D modeling with automated nesting algorithms to optimize material usage, reducing waste by 15% compared to manual methods.
Ideal for stainless steel, aluminum, and copper, sheet metal fabrication meets rigorous demands in aerospace, architecture, and renewable energy systems. Its ability to handle reflective or corrosion-resistant finishes—such as powder coating or anodizing—ensures parts withstand extreme temperatures (-40°C to 1,200°C) and harsh environments.
Sheet Metal Fabrication Applications
Sheet metal fabrication revolutionizes industries by transforming raw metal sheets into high-performance components for aerospace, automotive, and energy sectors. Leveraging laser cutting, CNC punching, and robotic welding, this process produces parts spanning 0.2mm micro-electronics housings to 20-meter solar panel frames. From corrosion-resistant food processing conveyors to EMI-shielding server racks, its adaptability bridges prototyping agility with mass-production efficiency.
Modern fabrication integrates AI-driven predictive maintenance for presses and IoT-enabled quality tracking, slashing lead times by 35%. Whether crafting custom hydraulic manifolds or million-unit appliance panels, sheet metal solutions balance cost-efficiency with mission-critical durability.

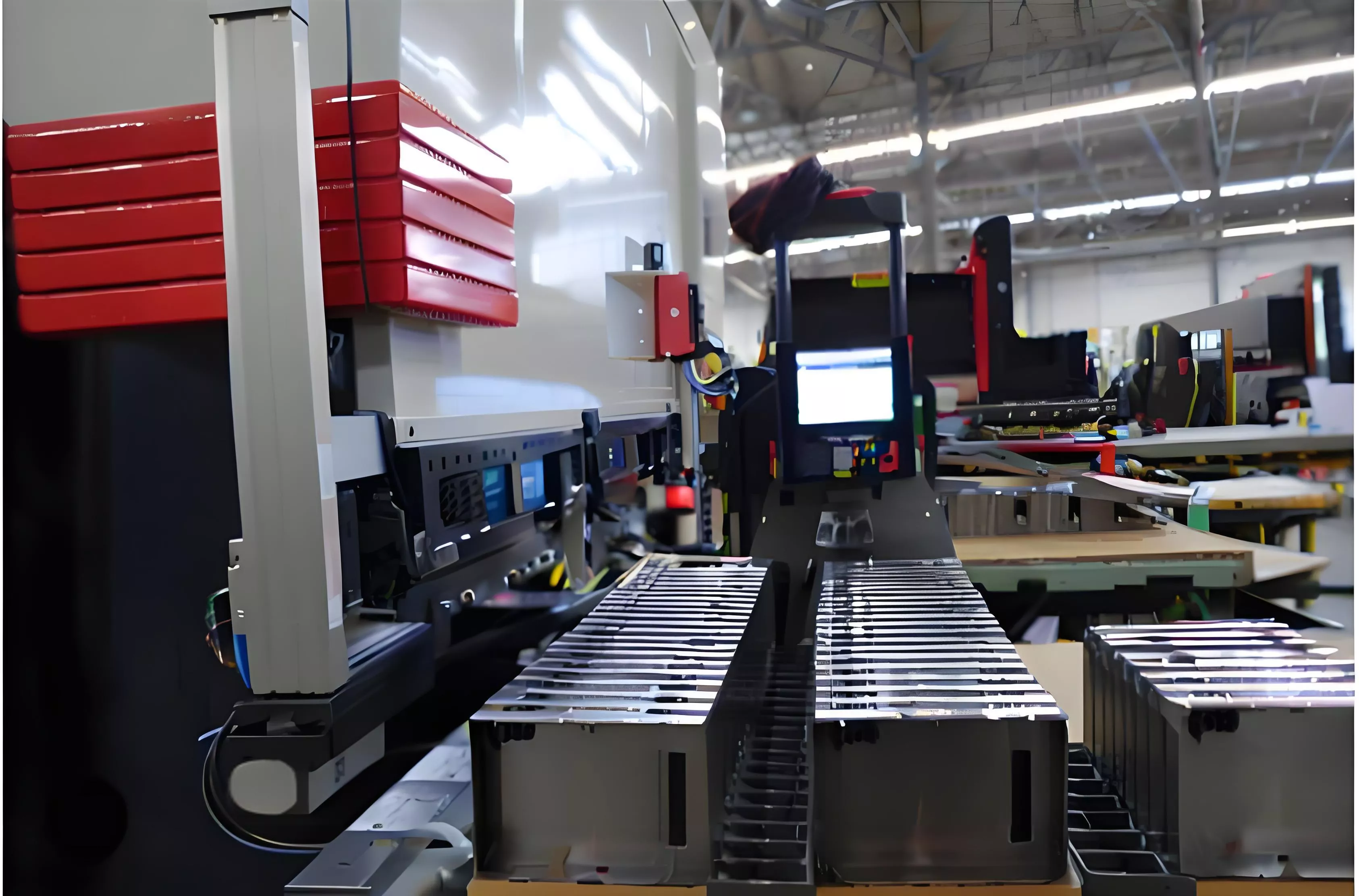

Sheet Metal Fabrication Process
Sheet metal fabrication converts flat metal sheets into precision components through cutting, bending, and welding operations. Using CNC lasers, press brakes, and welding systems, this process handles materials from 0.4mm thin aluminum to 12mm-thick steel, producing items like electrical enclosures, machinery guards, and ventilation ducts.
• Laser Cutting • Shearing • Bending • Punching
• Laser Drilling • Tapping • Forming • Welding
• Brushing • Deburring • plating • Powdercoat
• painting • MACHINING

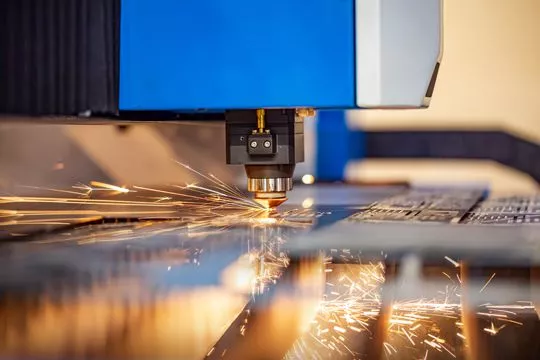

What is Laser Cutting?
Laser cutting is a digital manufacturing technique that uses a highly focused laser beam to slice through materials with micron-level precision. The concentrated heat from the CO2 or fiber laser either melts, evaporates, or blows away targeted sections of the workpiece, producing smooth-finished edges ideal for industrial applications. This versatile process handles both basic geometric patterns and intricate designs across materials ranging from acrylic to stainless steel.
Industrial laser cutting has revolutionized sheet metal fabrication, enabling efficient production of components from automotive parts to architectural elements. Modern laser cutting services now offer instant online quoting systems, allowing clients to upload CAD files for rapid prototyping or bulk orders. Laser-cut aluminum and copper alloys are particularly favored in aerospace engineering for their precision-cut components. As a sustainable alternative to traditional die cutting, professional laser cutting companies utilize CNC-controlled systems to deliver consistent results for low-volume custom jobs and high-volume production runs alike.
Advantages of Laser Cutting
Can produce parts of almost any 2D shape
More precise and economical than plasma cutting
Fast turn time Can be used to etch instead of cut
Laser Cutting Design Tips
Sharp inside corners may be slightly rounded due to beam radius
Edges will be heat affected
Edges may have some draft
Minimal kerf width
Keep hole diameters equal to or larger than the material thickness

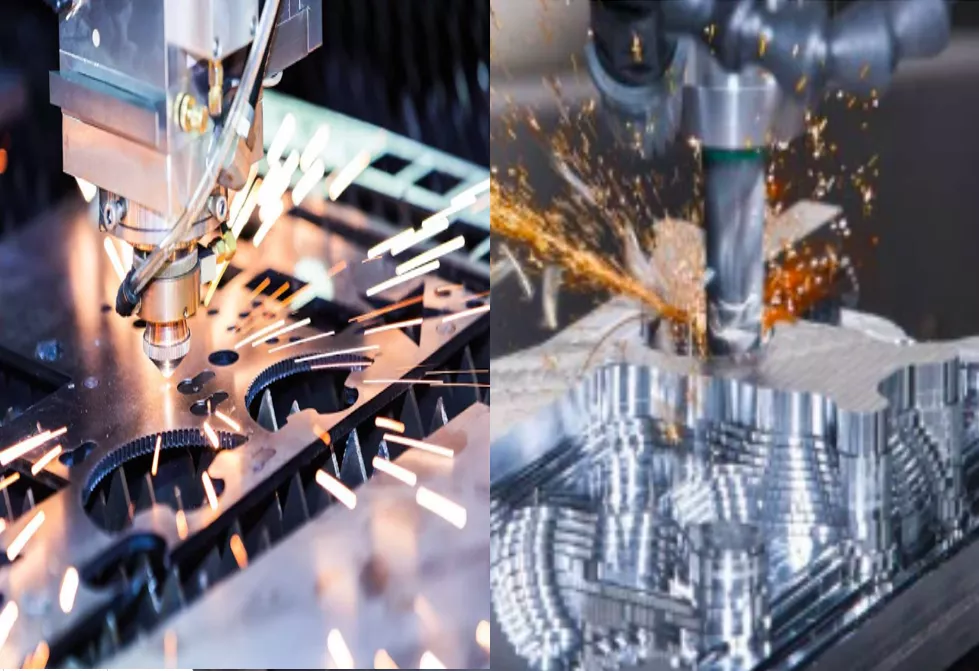

Laser Cutting vs CNC Machining
Laser cutting employs a high-energy light beam for contactless material processing, excelling in 2D sheet metal fabrication with ±0.1mm precision. Unlike CNC machining's rotating tools that physically carve materials, lasers melt or vaporize metals/plastics without mechanical force, minimizing heat distortion in thin-gauge materials. This method dominates stainless steel and aluminum profile cutting for rapid prototyping.
CNC machining shines in 3D contouring of bulk materials, handling thicker steel plates (up to 300mm) and hardened alloys unreachable by lasers. While laser cutting services optimize speed for flat components like enclosures or brackets, CNC milling ensures tighter tolerances (±0.025mm) for load-bearing gears and engine blocks. Modern manufacturers often combine both: laser-cut initial blanks followed by CNC finishing for complex aerospace assemblies.

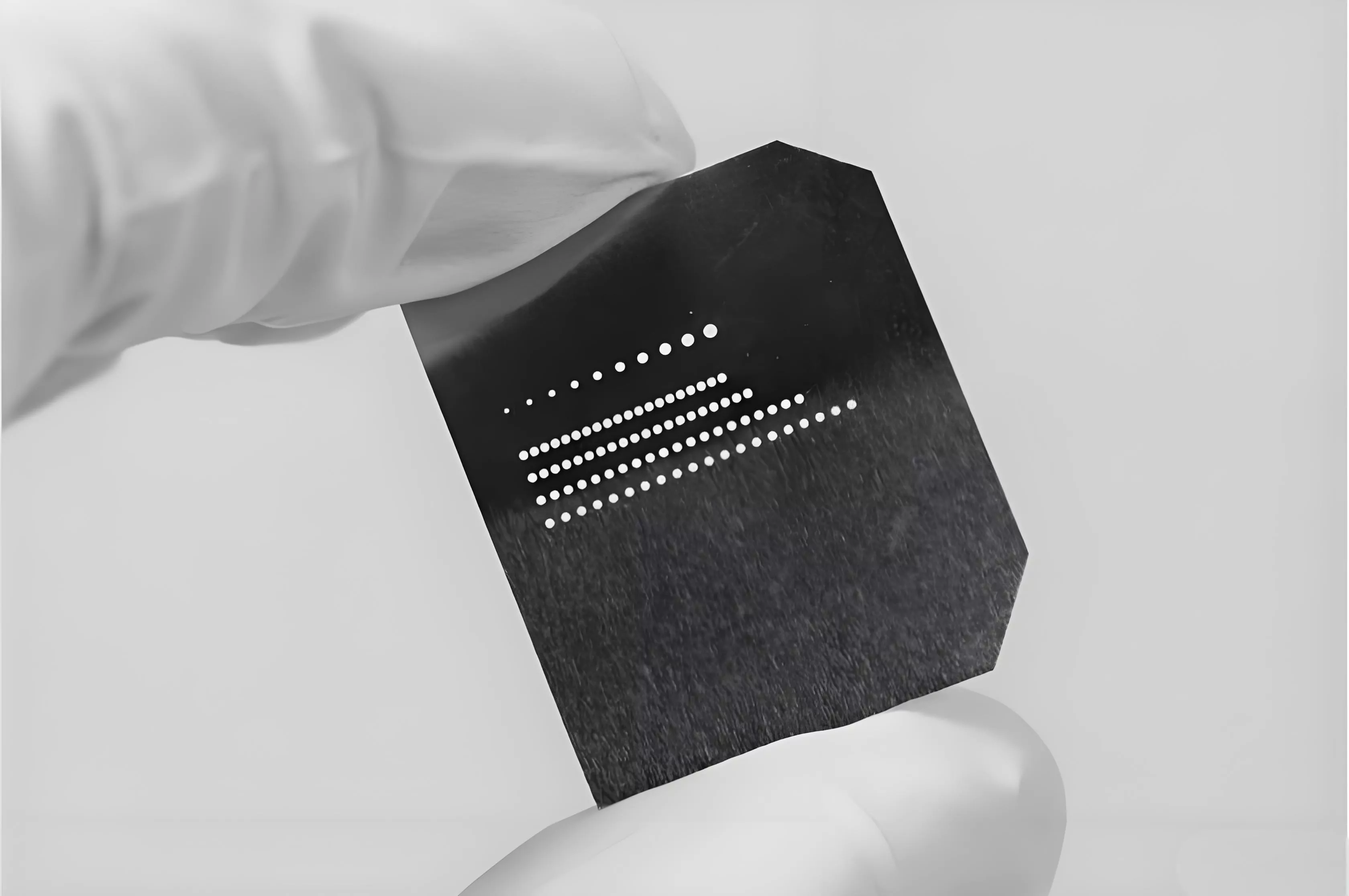

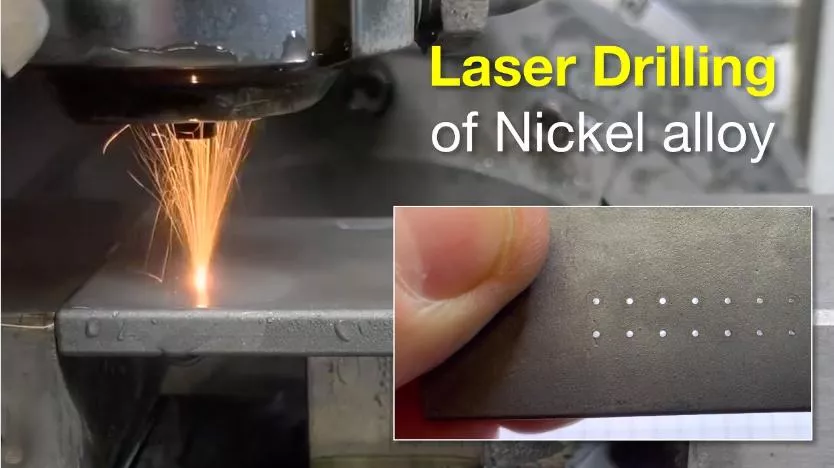

What is Laser Drilling?
Laser drilling uses a focused high-energy beam to create precise holes by vaporizing materials layer by layer. This non-contact process achieves micron-level accuracy (±0.01mm) in metals, ceramics, and composites without mechanical stress. Unlike traditional drilling tools, lasers produce clean-edged micro-holes as small as 0.005mm diameter, ideal for heat-sensitive aerospace components and medical device filtration systems.
As the preferred method for micro-hole drilling in hardened alloys, laser drilling services enable complex patterns on turbine blades and circuit boards. Online laser drilling platforms streamline orders for automotive fuel injectors and semiconductor templates, handling materials from 0.1mm foils to 15mm steel plates. Leading manufacturers leverage this technology for both prototyping and high-volume production, reducing processing time by 50% compared to CNC drilling in thin-gauge sheet metal fabrication.

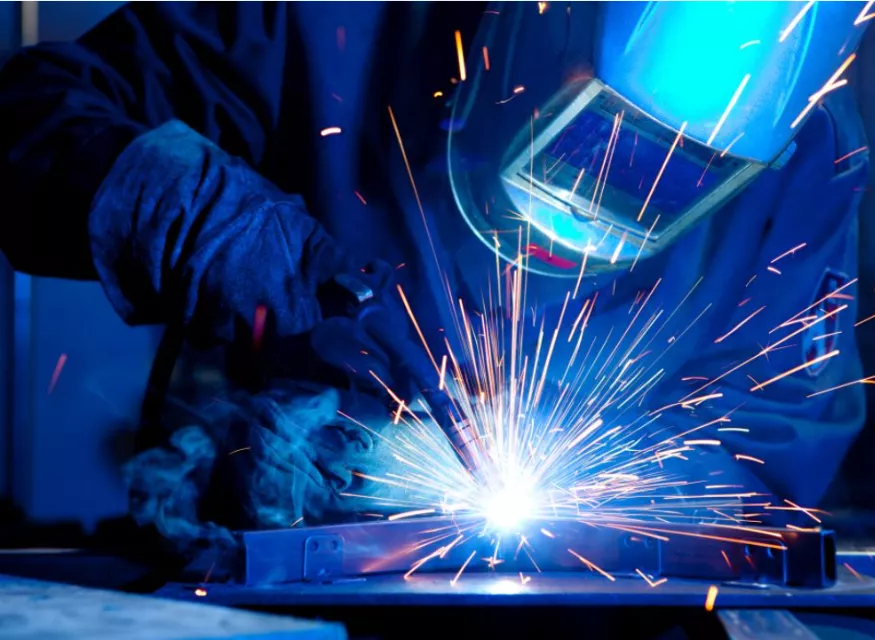

Welding in Sheet Metal Fabrication
Welding is essential for joining sheet metal parts (0.5-6mm thickness) in automotive, aerospace, and electronics. Modern processes balance speed, precision, and cost for custom projects.
Why Choose Welding?
· Speed: MIG/spot welding for bulk orders
· Versatility: Tackle steel, aluminum, or copper alloys
· Durability: Seam strength matches base materials
· Professional sheet metal welding services support prototypes to mass production.
Choose the most suitable welding process for different sheet metal products.

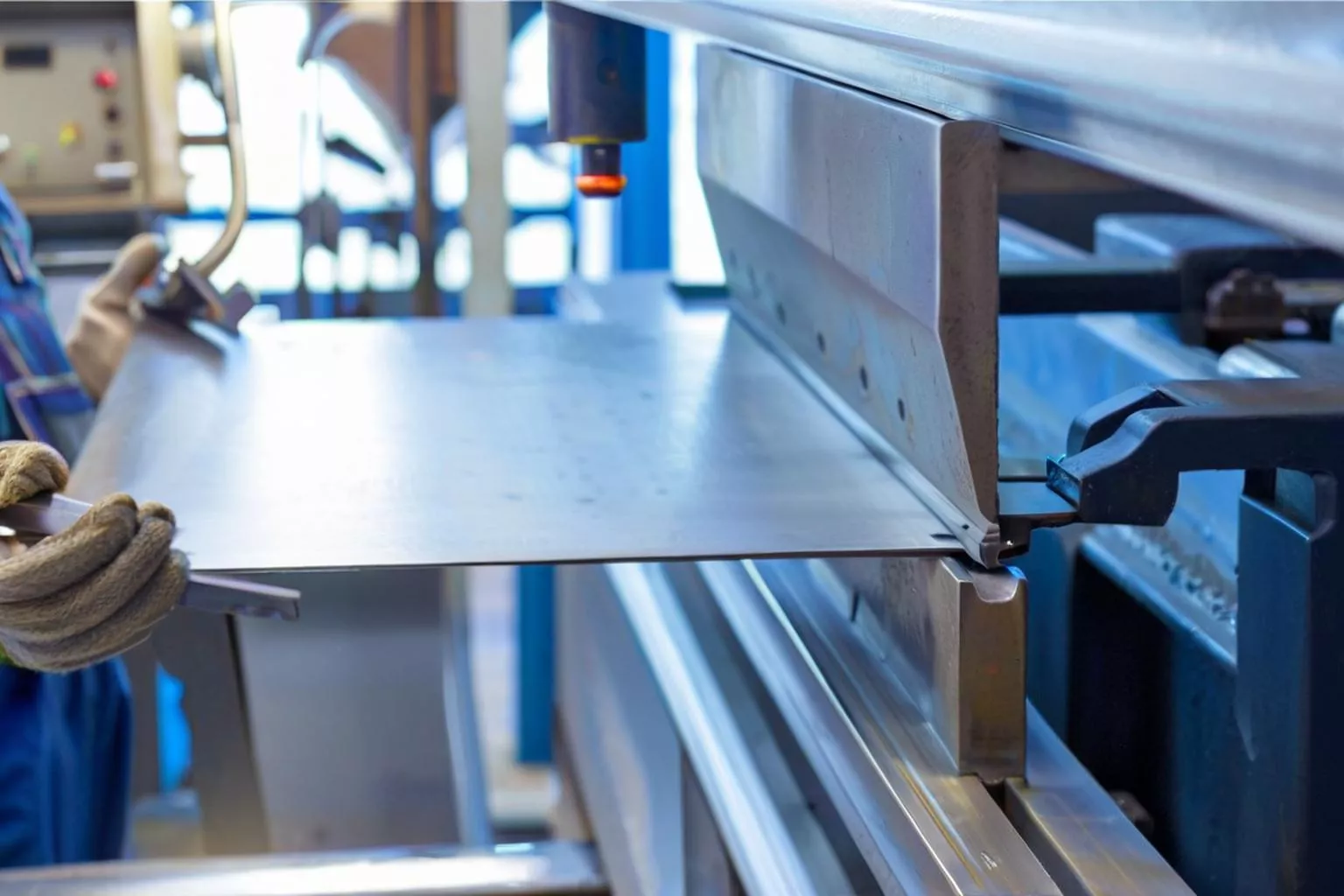

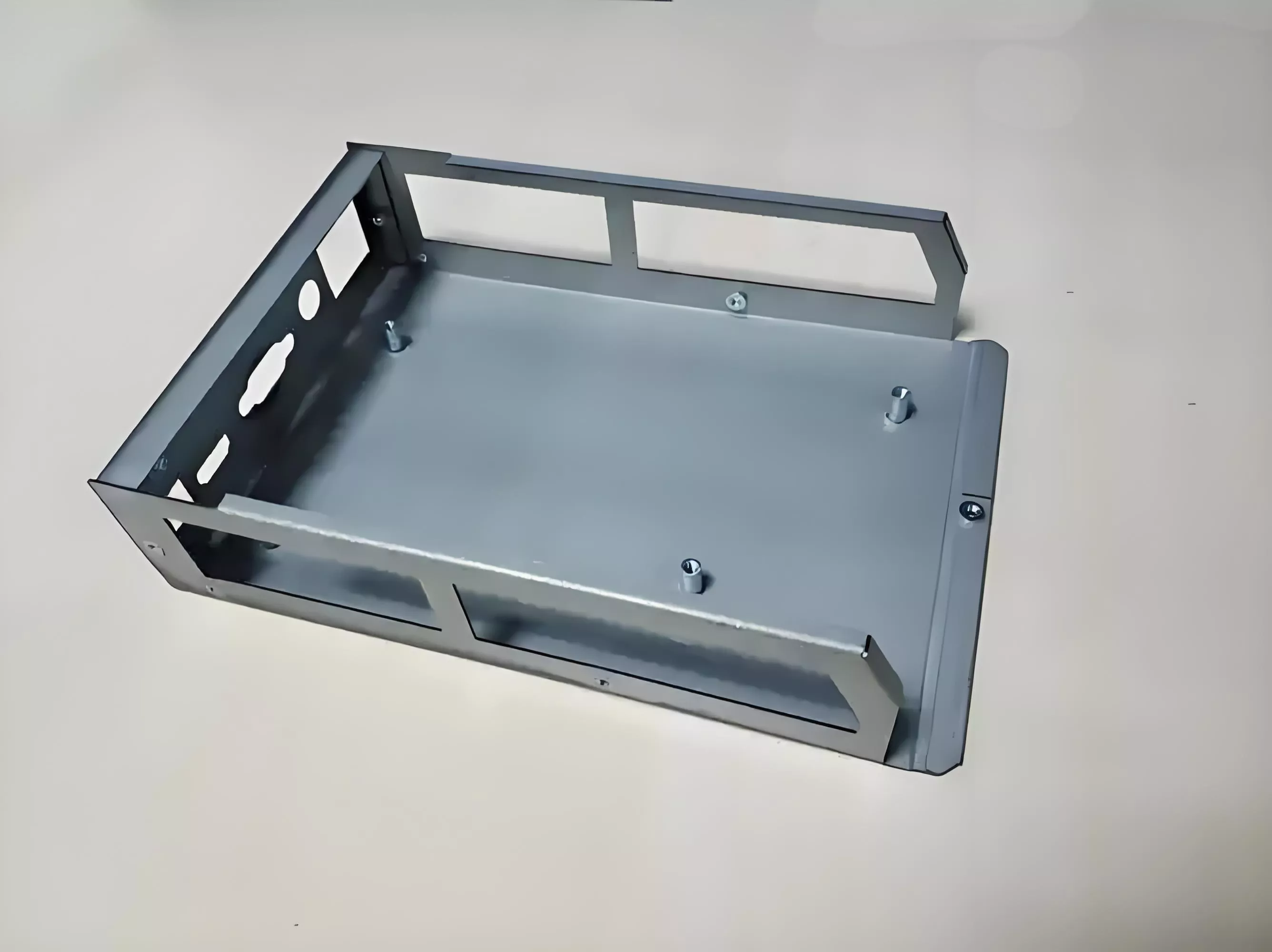

Bending Process
Bending process is a critical step in sheet metal fabrication where metal sheets or plates are shaped into specific angles or curves using mechanical force. By applying pressure with tools like press brakes, materials such as steel, aluminum, or stainless steel are deformed to achieve precise geometries. This method is ideal for creating custom metal parts, enclosures, or structural components with high repeatability.
Modern bending relies on CNC (Computer Numerical Control) technology to ensure accuracy and consistency for both small-scale prototypes and large production runs. Precision bending is widely used in industries like automotive, aerospace, and construction to form complex shapes without compromising material strength.
Partnering with a professional metal bending company ensures your designs meet tight tolerances and industry standards. From V-bending to air bending, advanced CNC bending technology delivers reliable solutions for sheet metal fabrication projects.
Laser Drilling Applications
Laser drilling utilizes focused light beams to create micro-holes (0.005-2mm diameter) in metals, ceramics, and polymers with ±0.01mm precision. This non-thermal process minimizes heat-affected zones, making it critical for aerospace cooling holes in turbine blades and medical device filtration membranes requiring micron-level consistency.
From automotive fuel injector nozzles to circuit board microvias, laser drilling services deliver burr-free holes in materials ranging from 0.05mm copper foils to 15mm titanium plates. Online platforms enable instant quoting for high-density hole patterns in semiconductor templates and diamond wire drawing dies. Unlike mechanical drilling, lasers achieve 500+ holes/second in thin-gauge sheet metal fabrication while maintaining structural integrity for sensitive electronics and optical components.
Bending Considerations
Bending considerations are essential factors in sheet metal fabrication that ensure accurate and durable bends in metal parts. This process involves shaping metal sheets or plates into specific angles or curves using press brakes and specialized tooling. Proper bending requires careful planning around material properties, bend radius, and springback effects to maintain structural integrity and meet design specifications.
Key bending considerations include:
· Material Thickness: Thicker metals (e.g., 1mm to 25mm) require higher tonnage press brakes and adjusted bend radii.
· Bend Radius: Matching the tooling radius to the material prevents cracking and ensures smooth curves.
· Springback Compensation: Metals like aluminum or stainless steel naturally "spring back" slightly after bending, necessitating over-bending to achieve target angles.
· K-Factor: A critical calculation that determines the neutral axis of the bend, influencing flat pattern accuracy.
Advanced CNC bending technology enables precise control over these variables, making it ideal for both prototyping and high-volume production. Industrial bending solutions support applications in automotive, HVAC, and electronics, delivering burr-free edges and consistent results.
Sheet Metal Bending vs. Tube Bending
Sheet metal bending and tube bending are two core processes in metal fabrication, each suited for distinct applications. While both shape materials into specific forms, their techniques, tools, and outcomes differ significantly.
Sheet Metal Bending focuses on deforming flat sheets or plates (e.g., steel, aluminum) into angular or curved profiles using press brakes and dies. This method is ideal for creating enclosures, brackets, or chassis with precise bends. Key factors include material thickness (0.5mm–25mm), bend radius, and springback compensation to ensure dimensional accuracy.
Tube Bending, on the other hand, shapes hollow cylindrical materials (round, square, or rectangular tubes) into curves or angles without collapsing the walls. Techniques like rotary draw bending or mandrel bending are used for applications such as handrails, exhaust systems, or hydraulic tubing. Critical considerations include wall thickness, bend radius, and avoiding ovality.
Key Differences:
· Material Shape: Sheet metal uses flat sheets; tubes are cylindrical.
· Tooling: Press brakes for sheets vs. mandrels/rollers for tubes.
· Applications: Structural parts (sheet) vs. fluid transport/structural frameworks (tubes).
· Precision: Sheet bending prioritizes angle accuracy; tube bending focuses on maintaining cross-section integrity.
·
Modern CNC bending technology enhances both processes, enabling complex geometries and repeatability. For sheet metal, air bending reduces tooling costs, while mandrel bending ensures smooth, kink-free tube curves.
Sheet Metal Parts
