Advantages of Swiss Machining
Achieve micron-level precision with CNC Swiss lathes, ideal for aerospace and medical industries requiring flawless, complex components.
Optimize high-volume production through single-setup efficiency, cutting costs while maintaining tight tolerances.
Rely on automated CNC Swiss machining for scalable, durable solutions in titanium and specialty alloys—engineered for mission-critical performance.
Design Recommendations for Precision Swiss Machining
1. Match Materials to Swiss Lathe Strengths
Use titanium, 316L stainless, or PEEK for complex, small-diameter parts.
Keep tolerances ≥±0.002" unless critical to avoid cost spikes.
2. Streamline Geometry for Single-Setup Success
Design symmetrical, slender parts (≤12x diameter ratios) with chamfered
chamfered edges (≥0.005") to prevent tool wear. Avoid thin walls, ideal for
medical implants or microfluidic devices.
What is Swiss Machining?
Swiss machining is a precision manufacturing process that uses specialized CNC Swiss lathes to create small, complex components with ultra-tight tolerances. Unlike conventional turning, Swiss machines employ a sliding headstock and guide bushing to stabilize the workpiece, enabling simultaneous cutting operations on multiple axes. This method excels at producing slender, intricate parts like medical implants or aerospace screws with diameters as small as 0.5mm.
Ideal for high-volume precision components, Swiss machining handles materials ranging from stainless steel and titanium to engineering plastics. The process minimizes vibration, achieving surface finishes down to Ra 8μin (0.2μm), while maintaining tolerances within ±0.0002" (0.005mm). Its unique "live tooling" capability allows drilling, milling, and threading in a single setup—perfect for microfluidic devices or watch gears.
From medical catheters to defense connectors, Swiss machining dominates industries demanding micron-level accuracy. Modern CNC Swiss lathes integrate automation for lights-out production, reducing waste by 30% compared to traditional methods.

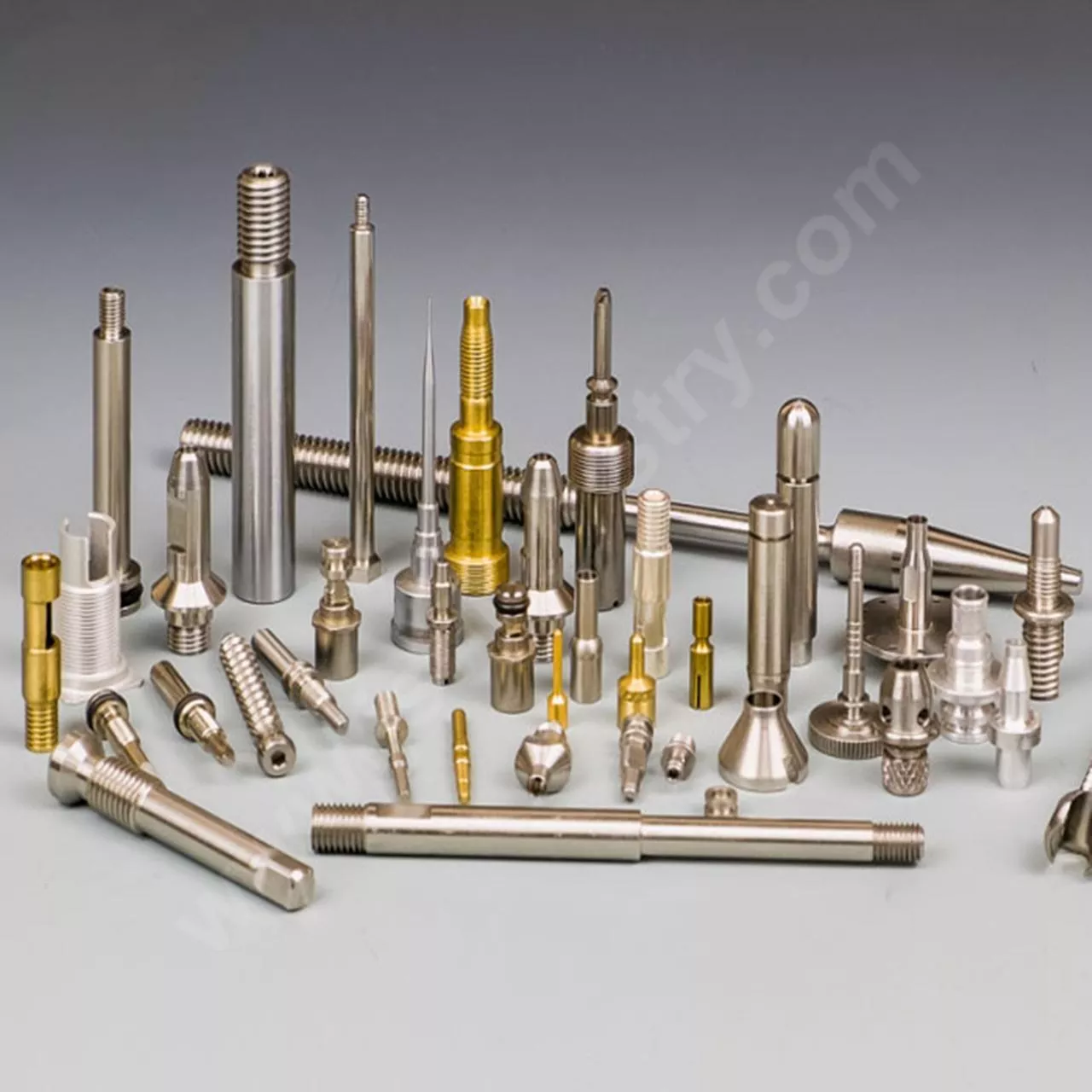

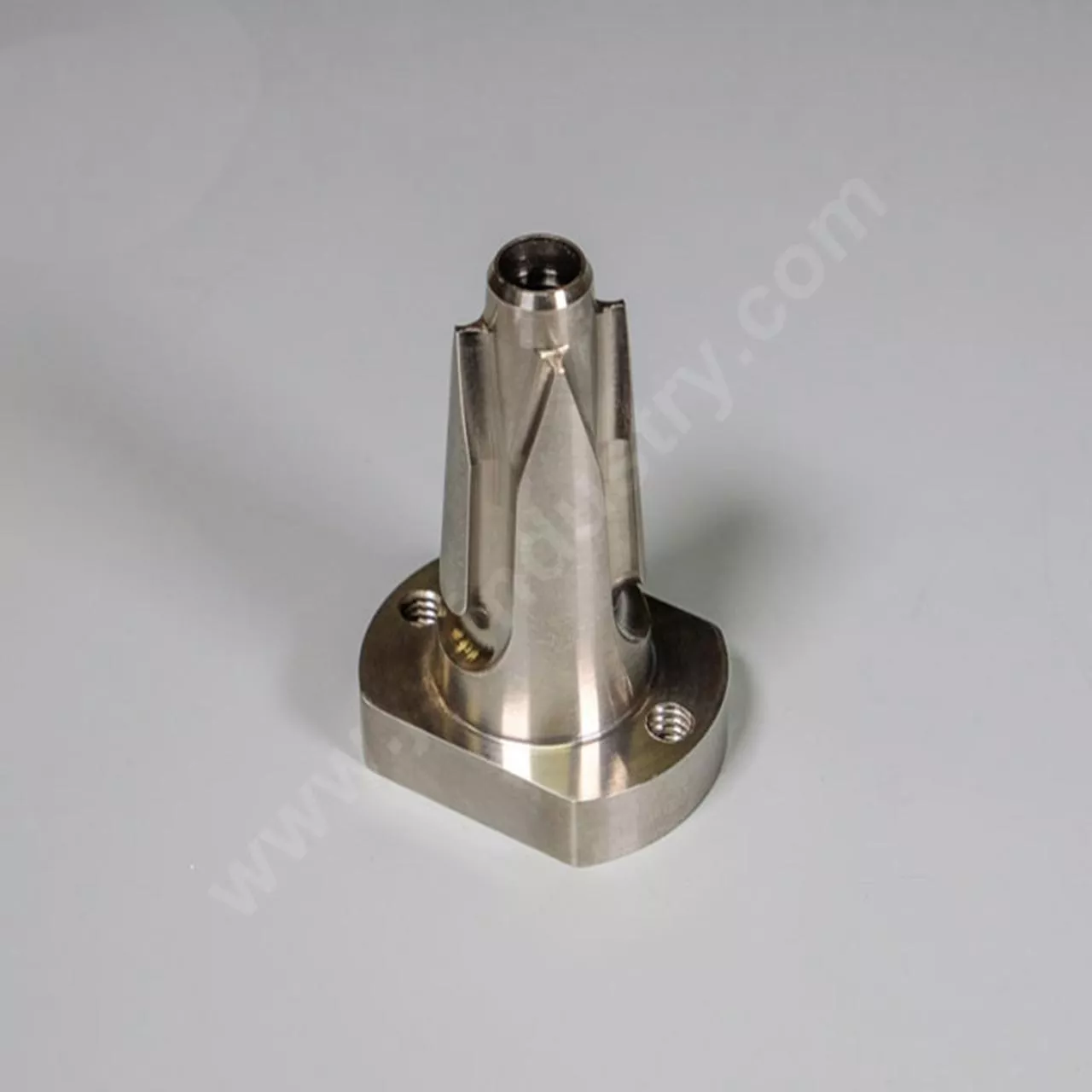

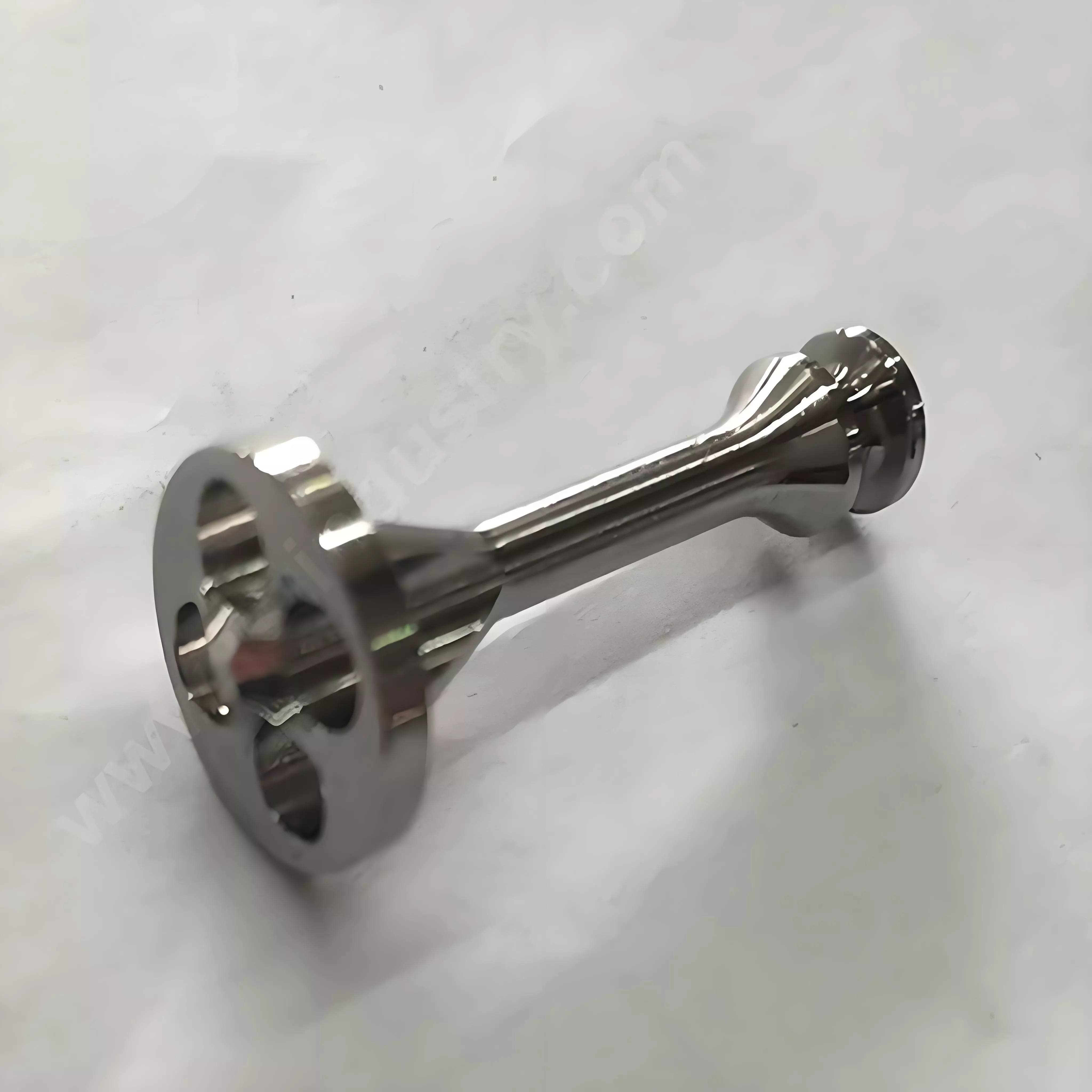

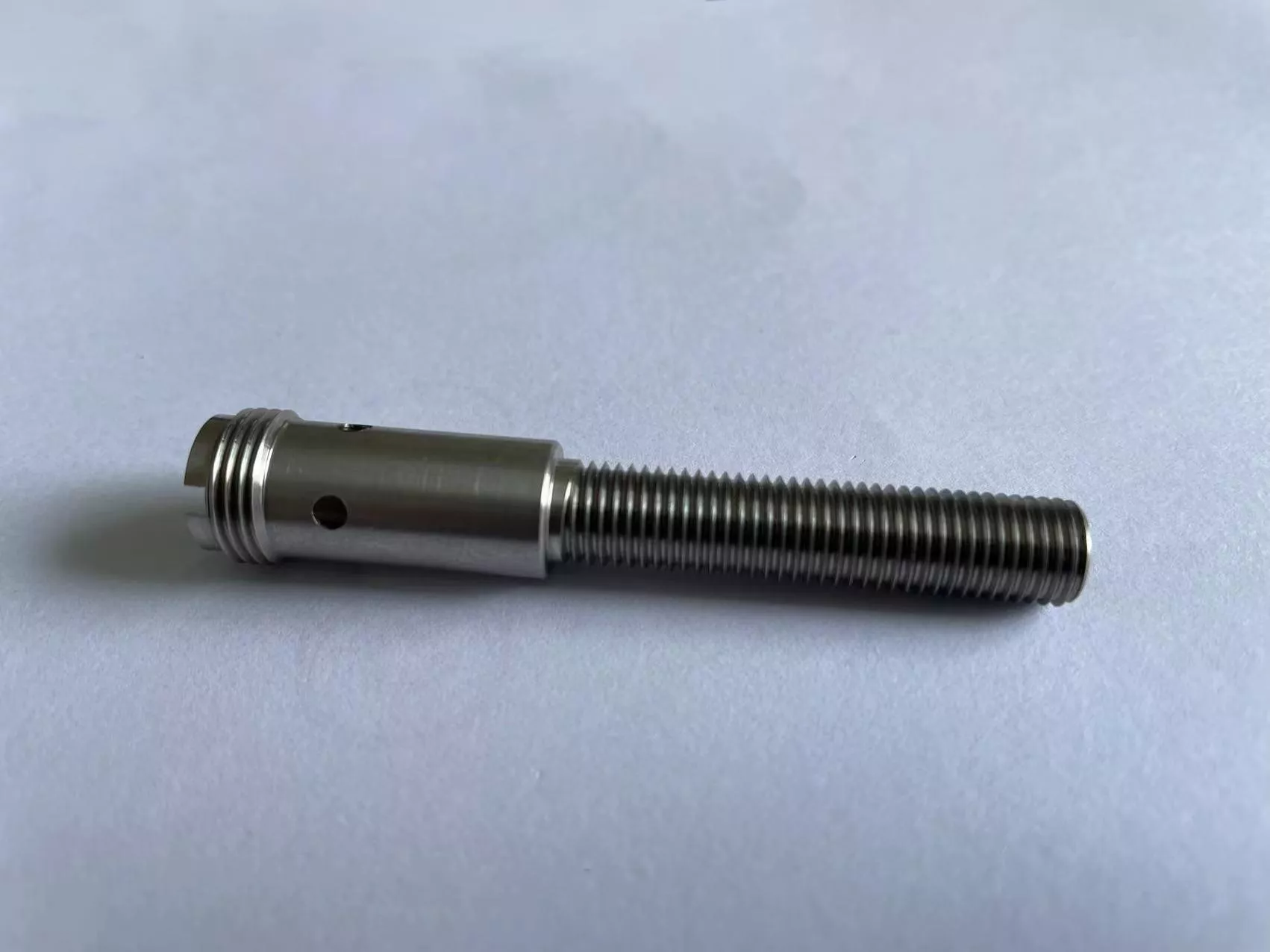

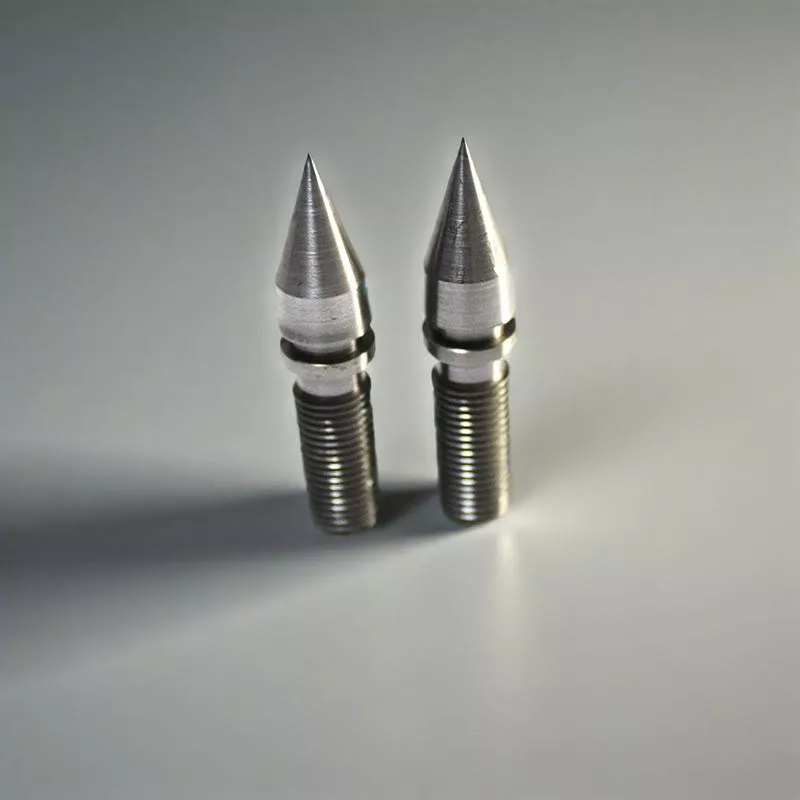

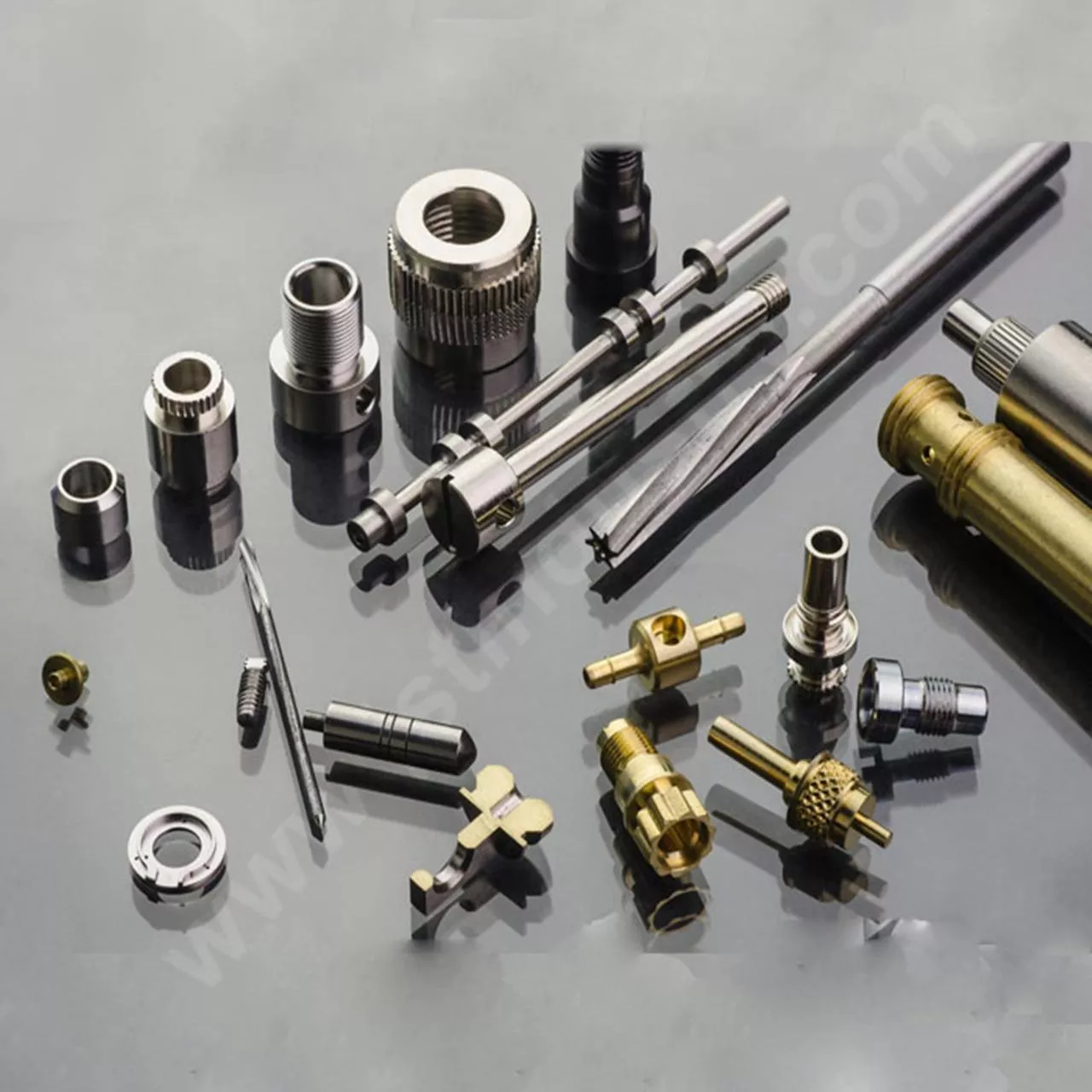

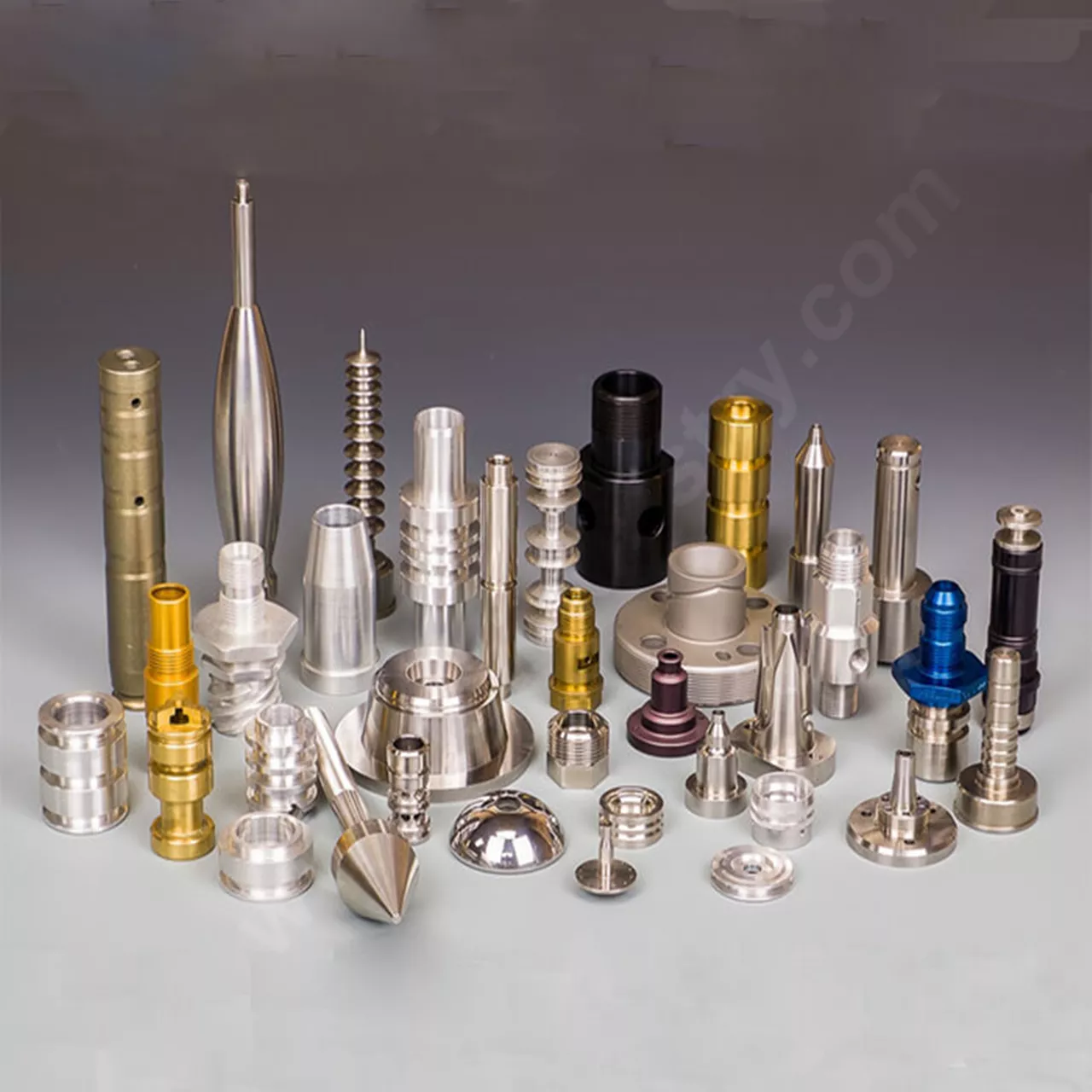

Swiss Machining Parts

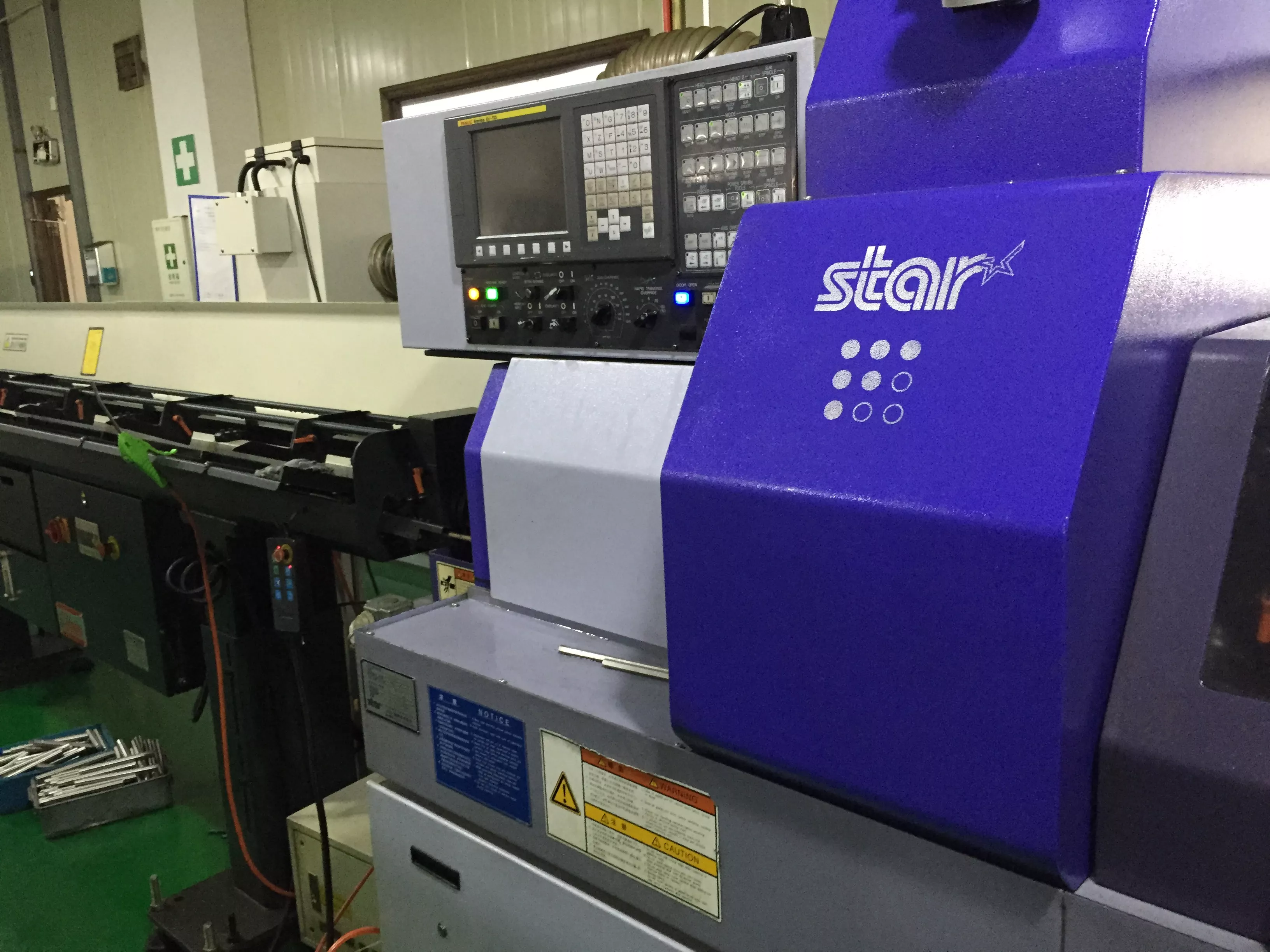

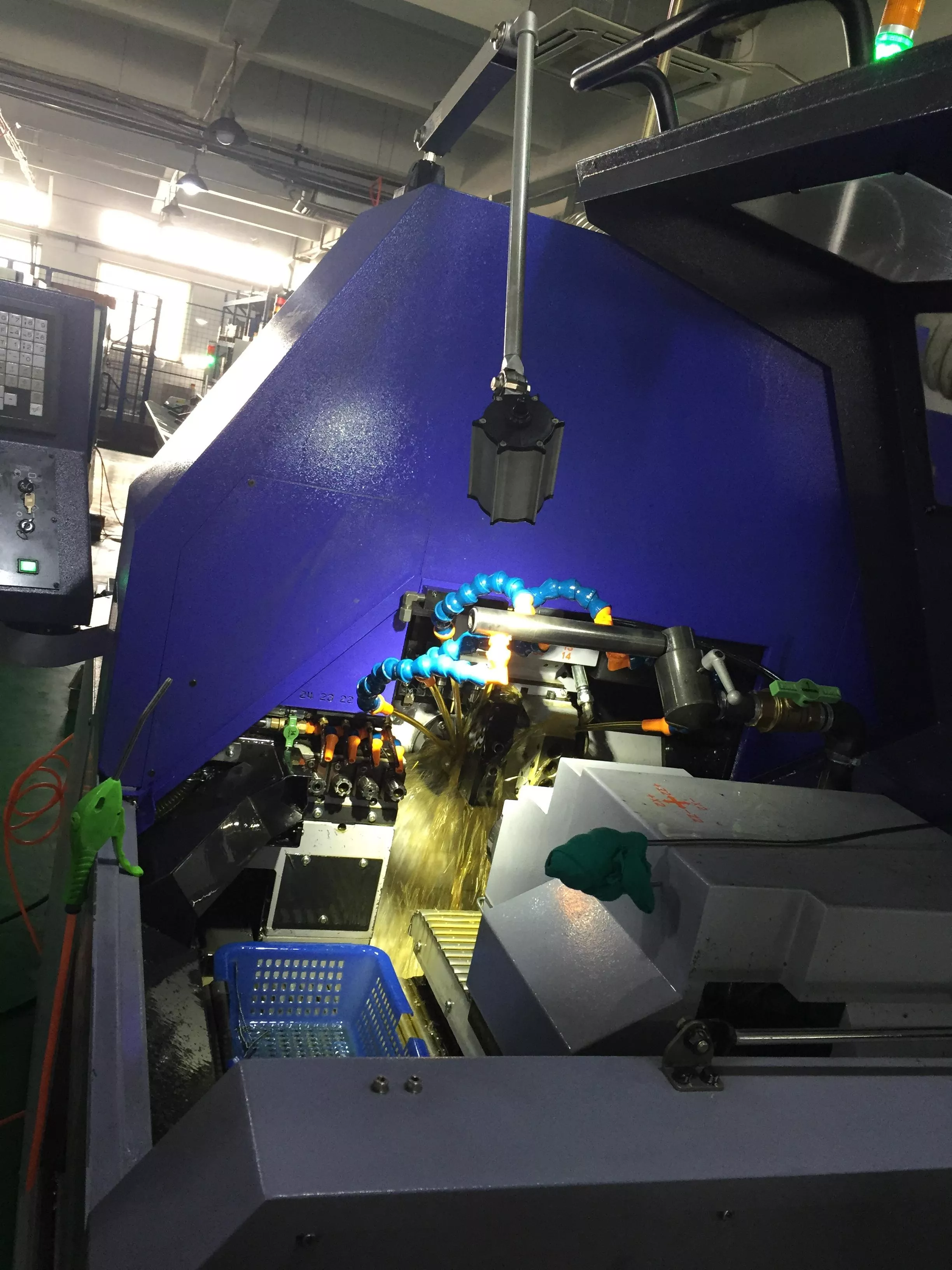

CNC Swiss Machine Process
The CNC Swiss machining sequence begins with creating a precision 3D model, optimized for multi-axis programming and converted into machine-specific CAM instructions. A Swiss-type lathe is then equipped with synchronized tooling such as:
• Guide bushings for material stabilization
• Dual-axis turning attachments
• Micro-drilling units
• Thread whirling heads
• Cross-milling adapters
• High-speed cutoff tools
Operators secure bar stock through the machine's guide bushing system, enabling simultaneous front and rear toolpost operations. A test cycle is executed to validate tool paths, surface finishes, and micrometer-level tolerances. Post-inspection using CMM technology ensures compliance with medical/aerospace-grade specifications.
Advanced Swiss lathe machining incorporates live tooling for complete part completion in single setups. For sustained precision in high-volume production, integrated bar feeders and chip conveyors maintain uninterrupted operation. This process excels at manufacturing complex miniature components with ±0.0002" repeatability, making it ideal for watch gears, dental implants, and drone actuators.
CNC Swiss Machining Benefits
CNC Swiss machining revolutionizes complex component manufacturing with micron-level tolerances and unmatched repeatability. This advanced technology eliminates human error while producing intricate geometries—ideal for high-volume, mission-critical industries like aerospace and medical devices.
Key Benefits:
• Ultra-Tight Tolerances (±0.0002") for critical applications
• Multi-Axis Synchronization reduces secondary operations by 70%
• High-Speed Production with continuous material feed
• Minimal Material Waste through optimized bar stock usage
Material Versatility
Swiss CNC lathes excel in machining exotic metals and engineering-grade alloys such as:
• Titanium (Grade 2 & 5)
• Stainless Steel (303, 304, 316L)
• Medical-Grade Brass & Copper
• PTFE & PEEK (for biocompatible parts)
• Aluminum 6061/7075 (anodizing-ready)
Ideal Applications for CNC Swiss Machining Solutions
CNC Swiss machining delivers unmatched accuracy (±0.0002") for complex, high-volume components across mission-critical sectors.
Target Industries & Components
Medical Technology
• Endoscopic needle tips (316L surgical steel)
• Orthopedic implant threads (Ti-6Al-4V/CoCr alloys)
• Drug delivery valve stems (PEEK/Ceramic hybrids)
Aerospace Systems
• Turbine fuel injectors with 0.005mm orifice tolerances
• Satellite gyroscope housings (Inconel 718)
• Avionics heat sinks (6061-T6 aluminum)
Semiconductor Equipment
• Wafer handling robot arms (ultra-flat alumina ceramic)
• Vacuum chamber feedthroughs (17-4PH stainless)
Core Process Breakdown
Material Loading
Automated bar feeders continuously supply raw stock into the guide bushing.
Guide Bushing Support
The patented stationary guide bushing stabilizes material within 0.001mm vibration, enabling precise cutting of slender parts.
Multi-Axis Machining
Live tooling performs simultaneous turning, milling, drilling, and threading operations in a single chucking.
Automated Ejection
Finished components exit through anti-scratch conveyors, while new stock advances for uninterrupted 24/7 cycles.
Why Swiss Machining Dominates?
▸ Micro-Precision: Achieve ±0.0002" tolerances on parts 1mm diameter
▸ Material Mastery: Process steel, brass, aluminum and thermoplastics with equal precision
▸ Zero Downtime: Automated bar feeders enable 24/7 production of 10,000+ unit batches
Which Industries Rely on CNC Swiss Machining?
CNC Swiss machining serves as the backbone for precision manufacturing across these essential sectors:
1. Medical Devices
· Everyday Products: Hypodermic needle hubs, IV connector threads, dental drill shafts
· Key Advantage: Achieves medical-grade smoothness (Ra<0.8μm) on stainless steel surfaces
2. Automotive Manufacturing
· Mass-Produced Parts: Fuel injector nozzles, transmission shift bushings, ABS sensor pins
· Cost Saver: Processes 10,000+ brass fittings per batch with ±0.005mm diameter consistency
3. Consumer Electronics
· Your Phone Uses These: SIM card tray springs, camera lens mounts, charging port contacts
· Material Flexibility: Machines aluminum alloys for heat sinks and POM plastic for silent gears
4. Fluid Control Systems
· Industrial Essentials: Water meter rotors, pneumatic valve cores, hydraulic fitting adapters
· Leak-Proof Guarantee: Holds 0.01mm tolerances on NPT pipe threads across 50,000 cycles
CNC Swiss Machining Considerations
For precision components requiring microscopic tolerances, CNC Swiss machining delivers unparalleled accuracy for complex, small-scale parts across industries. When planning your Swiss machining project, material selection directly impacts performance—stainless steel remains the gold standard for corrosion resistance, while aluminum and titanium excel in aerospace or medical applications demanding strength-to-weight ratios.
Modern CNC Swiss lathes integrate multi-axis capabilities and live tooling to machine intricate geometries in a single setup, accelerating production timelines without sacrificing ±0.005mm precision. By leveraging CAM programming, engineers can simulate tool paths and optimize feed rates, enabling real-time adjustments before machining begins. This automation bridges prototyping to full-scale manufacturing seamlessly, reducing material waste by up to 30%.
High thermal stability alloys like Inconel, Hastelloy, and 17-4PH stainless steel prove optimal for components exposed to extreme temperatures or stress. While material costs influence budgets, Swiss machining's minimized secondary operations often offset raw material expenses. Prioritize ISO-certified suppliers who combine technical alloys with bar-fed efficiency to balance durability and cost-effectiveness.
From micro medical implants to defense instrumentation, aligning material properties with Swiss machining's sub-spindle synchronization ensures repeatability for high-volume batches. Partner with facilities offering in-house metallurgical testing to validate heat treatment and surface finishing outcomes—critical for maintaining tolerances under 5 microns.
CNC Swiss Machining Materials
For precision-driven CNC Swiss machining, material selection directly impacts component performance, cost efficiency, and application suitability. Below are critical considerations and popular options:
1. High-Temperature & High-Strength Alloys
· Stainless Steel (304/316): Ideal for medical instruments and automotive components requiring corrosion resistance and structural integrity18.
· Titanium (Ti-6Al-4V): Aerospace and defense applications benefit from its unmatched strength-to-weight ratio and biocompatibility16.
· Inconel & Hastelloy: Superior heat resistance makes them optimal for turbine parts and chemical processing equipment12.
2. Lightweight Metals
· Aluminum (6061/7075): Widely used in automotive and electronics for rapid machining, corrosion resistance, and reduced part weight16.
· Magnesium Alloys: Suitable for aerospace components demanding ultra-low density and vibration damping1.
3. Conductive & Non-Corrosive Options
· Brass & Copper: Electrical connectors, threaded screws, and couplings leverage their conductivity and machinability34.
· Plastics (PEEK, Nylon): Used in insulators or low-friction components where thermal stability and chemical resistance are critical48.
4. Cost-Effective & High-Volume Materials
· Carbon Steel: Balances affordability with durability for industrial fasteners and machinery parts26.
· Pre-Hardened Alloy Steels: Reduce post-processing costs for high-volume batches requiring tight tolerances28.
Material Selection Tips
· Prioritize thermal stability for components exposed to extreme temperatures12.
· Match surface finish requirements with materials like stainless steel or titanium to minimize secondary operations68.
· Validate tolerances under 5 microns through in-house metallurgical testing for mission-critical parts6.
By aligning material properties with Swiss machining’s multi-axis capabilities, manufacturers achieve repeatable precision across industries—from micro medical implants to automotive subsystems13. Partner with ISO-certified suppliers offering bar-fed machining to optimize raw material utilization and lead times24.
